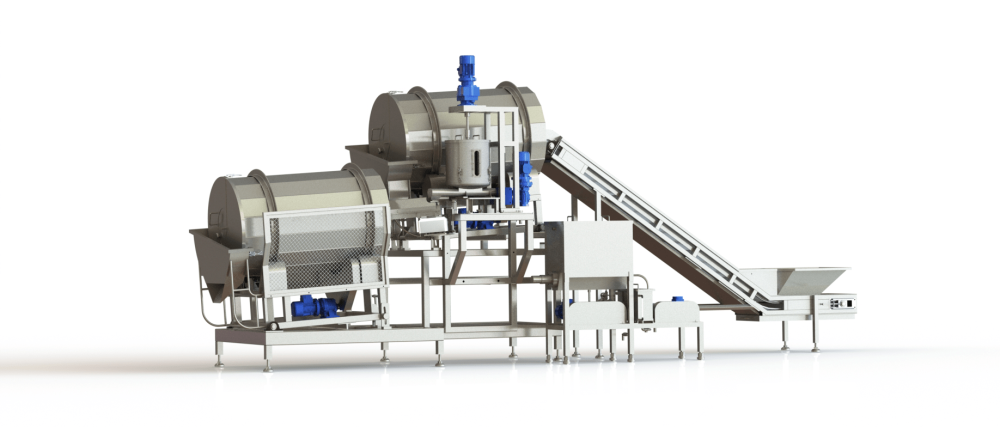

(FAO-300-2) TWO-STAGE FLAVOR APPLICATOR
Flavor & Seasoning System
The Two Stage Flavor Applicator sprays the hot oil on the first tumbler then proceeds to the next tumbler for powder seasoning on the roasted snacks continuously and uniformly. It consist of infeed conveyor, oiling tumbler, oil applicator, flavoring tumbler and flavor applicator with weigh screw feeder.
NP & Company is the industry-leading manufacturer of steam-cooked Snack Pellet Line, Extruded Snack Pellet Line, Coated Nuts Line, Pop Chips Line, Chocolate Vacuum Absorption Line, and many other machineries. NP is a total snack manufacturing solution provider. From NP’s supremely innovative, high-quality snack making solutions and systems that can address virtually any snack or pellet application in any market. From producing a pellet to fryer, roaster, seasoning, and even packaging, NP has a solution for you.
SPECIFICATIONS
Capacity
Approx. 150 to 300 kgs/hr
Size
8,800mm (L), 2,200mm (W) x 2,600 mm (H)
Power Requirements
6.5 kW
Compressed Air
50 li/hr. 6 bars pressure
Stainless steel frame
Tumbler and liquid tank
PLC control & HMI
Touch Panel control
Variable speed controller
Tumblers and in-feed conveyor
