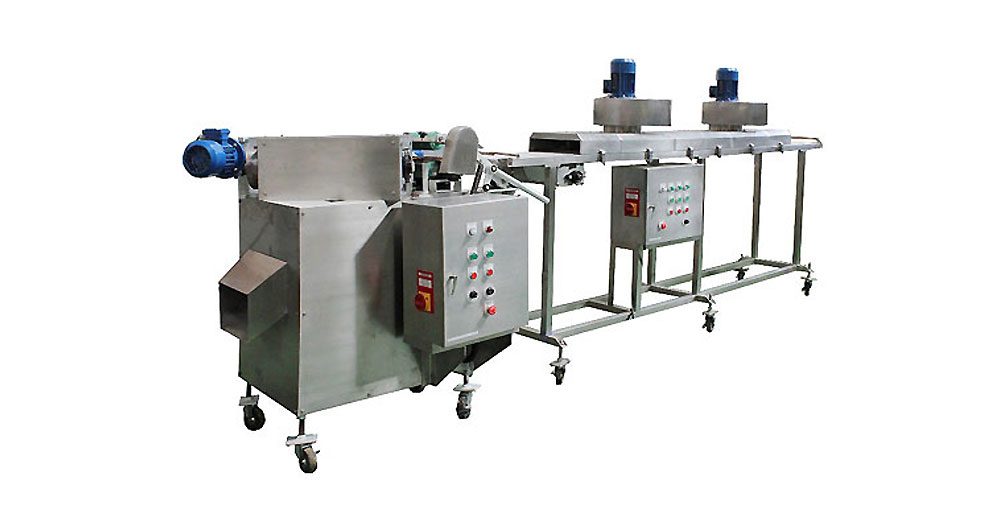

MS-45/90 BI-ANGULAR CUTTER
EXTRUDED 2D/3D PELLET LINE
The Bi-Angular Cutter MS-45/90 is placed in front of the extruder die head to produce a straight and long pellet. It consists of a 3 meter cooling conveyor and 45/90 degree bi-angular cutter.
SPECIFICATIONS
Conveyor Section
Motors:
0.2 kW x 2 for two units of ring blower, 0.2 W x 1 for conveyor drive; 3 Ph
Dimension:
300 mm (L) x 3,000 mm (W) x 1,000 mm (H)
Cutting Section
Motors:
0.4 kW x 1 for cutting drive, 0.2 kW for feeding roller unit
Dimension:
1,210 mm (W) x 1,340 mm (L) x 1,300 mm (H)
Dimension:
1,210 mm (L) x 1,340 mm (W) x 1,300 mm (H)
