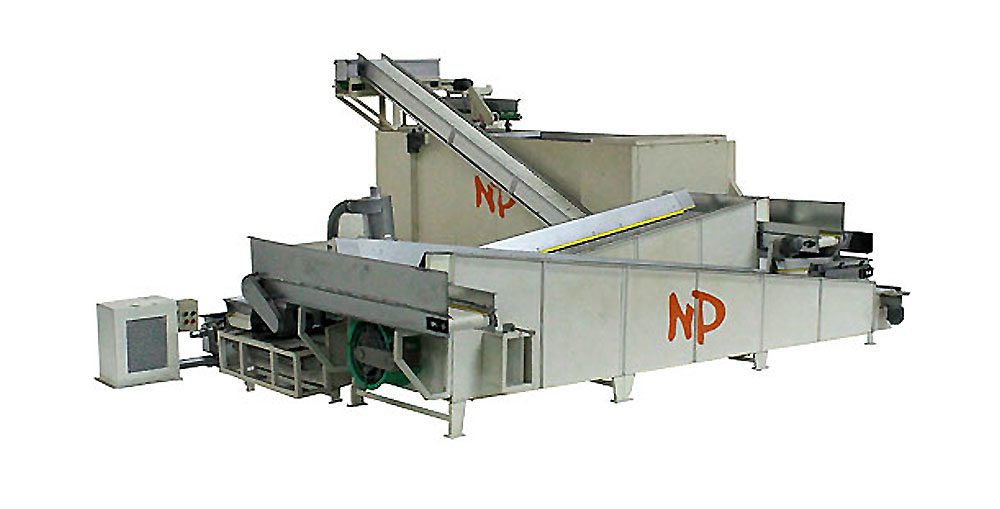

EDT-1000 CONTINUOUS PELLET DRYER
EXTRUDED 2D/3D PELLET LINE
It is a continuous flow drying system. It consists of a Pre-Drying unit Model: PED-500 and a Main Drying unit Model: ED-500 with 3-tiered Net Conveyor. The system requires 1 to 1.5 hours Drying Time (Depending on the characteristics of product to be dried).
SPECIFICATIONS
Drying Capacity
150-200 kgs/hr
Dimensions
Pre-Dryer:
5,900 mm (L) x 2,570 mm (W) x 1,050 mm (H)
Main Dryer:
6,000 mm (L) x 2,400 mm (W) x 2,350 mm (H)
