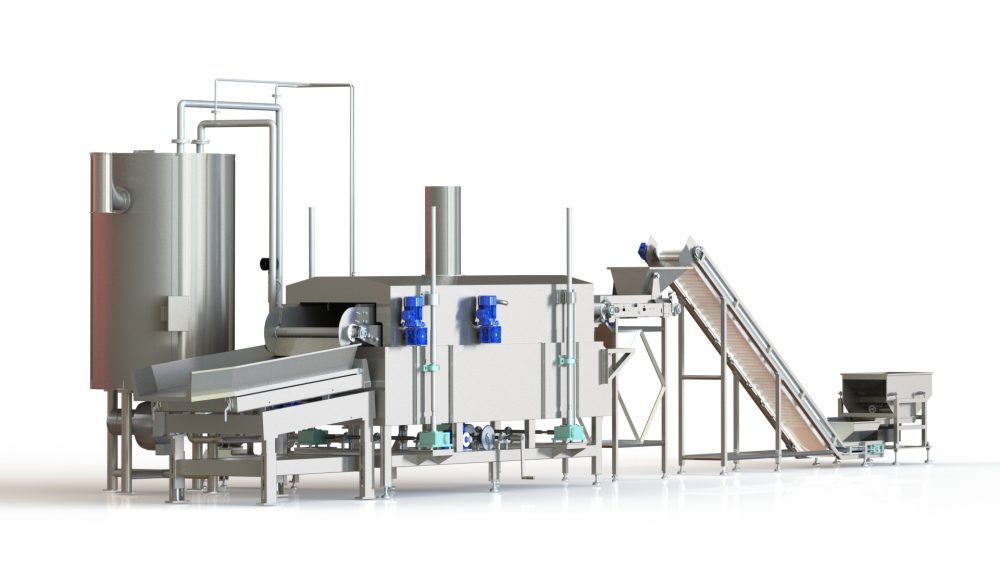

(CF-500 / CF-600) CONTINUOUS FRYER
Fryer System
The CF-500 / CF-600 Continuous Fryer is a big capacity fryer great for large scale snack manufacturers. The fryer consists of:
- Vibratory Feeder 1
- Lift-up Conveyor
- Vibratory Feeder 2
- CF-600 Fryer
- Vibratory Oil Remover/Separator
- Oil Recovery/Supply System
- Rotary Strainer
- Vertical Heat Exchanger (LPG/LNG)
- Electrical Line Control Panel
NP & Company is the industry-leading manufacturer of steam-cooked Snack Pellet Line, Extruded Snack Pellet Line, Coated Nuts Line, Pop Chips Line, Chocolate Vacuum Absorption Line, and many other machineries. NP is a total snack manufacturing solution provider. From NP’s supremely innovative, high-quality snack making solutions and systems that can address virtually any snack or pellet application in any market. From producing a pellet to fryer, roaster, seasoning, and even packaging, NP has a solution for you.
SPECIFICATIONS
Capacity
Approx. 300 kgs/hr to 500 kgs/hr (depending on the pellet) – For CF-500
Approx. 350 kgs/hr to 700 kgs/hr – For CF-600
Power Requirement
6.85 kW – For CF-500
11 kW – For CF-600
Dimension
8,182 mm (L) x 3,826 mm (W) x 3,104 mm (H) – For CF-500
10,500 mm (L) x 3,750 mm (W) x 4,000 mm (H) – For CF-600
Frying Kettle
161 L – For CF-500
300 L – For CF-600
Heat Exchanger Size
1,220 mm (Dia) X 2,992 mm (H) – For CF-500
1,190 mm (Dia) X 2,833 mm (H) – For CF-600
Heating Requirement
300,000 kCal – For CF-600
Fuel Consumption
18-25 kgs/hr (if LPG) – For CF-600
Frying Kettle
161 L – For CF-600
300 L – For CF-600
Frying Time
10 seconds (depending on product) – For CF-600
Design Working Temp
190˚C to 195˚C (depending on product) – For CF-600
Compressed Air Pressure
6 Bars – For CF-600
Total Volume of Oil in the system
252 L – For CF-500
608 L – For CF-600
Circulating Pump
5.5 kW Nishigaki (mechanical seal type) – For CF-600
