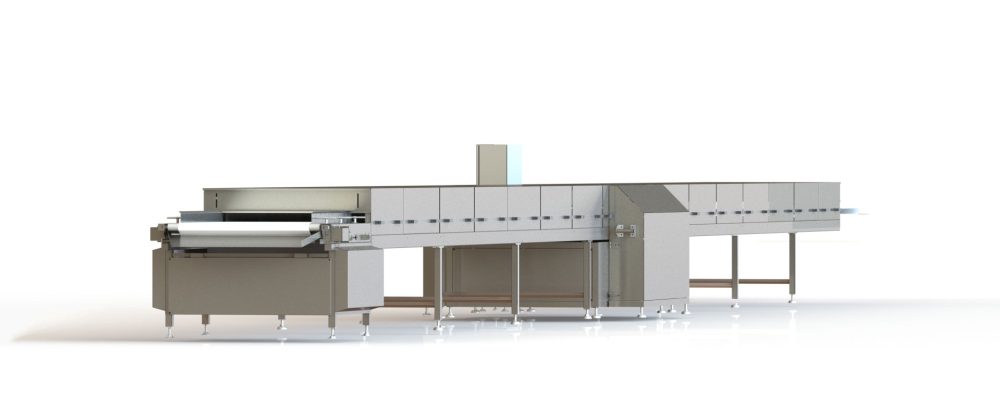

COOLING TUNNEL
After processing the choco absorbed corn puff product from the Leveler/Spreader, it is then transferred to the Cooling Tunnel to cool down the chocolate inside and out of the product.
NP & Company is the industry-leading manufacturer of steam-cooked Snack Pellet Line, Extruded Snack Pellet Line, Coated Nuts Line, Pop Chips Line, Chocolate Vacuum Absorption Line, and many other machineries. NP is a total snack manufacturing solution provider. From NP’s supremely innovative, high-quality snack making solutions and systems that can address virtually any snack or pellet application in any market. From producing a pellet to fryer, roaster, seasoning, and even packaging, NP has a solution for you.
SPECIFICATIONS
Automatic Centering Belt System
Cylinder Pneumatic Completed\Solenoid Valve & Regulator
Belt Sensor
Photo Sensor for auto tracking of belt
Scrapper Belt
Flat Nylon = T. 10 mm x 2 Pcs.
Conveyor Belt
Length: 18 m x Width:.1000 mm
Conveyor Material PU, T = 0,65 mm
Tunnel Dimension
P. 16 m x L.1200 mm x T. 300 mm
Refrigeration System
a. Condenser: 10 HP, 380 VAC, 50 Hz
b. Refrigerant: R 22
c. Room Temperature
d. Evaporator: 15 HP, 380 VAC, 50 Hz
e. Compressor: 12 HP
Motor Drive for Conveyor
1.5 Kw, 380 VAC, 50 Hz
