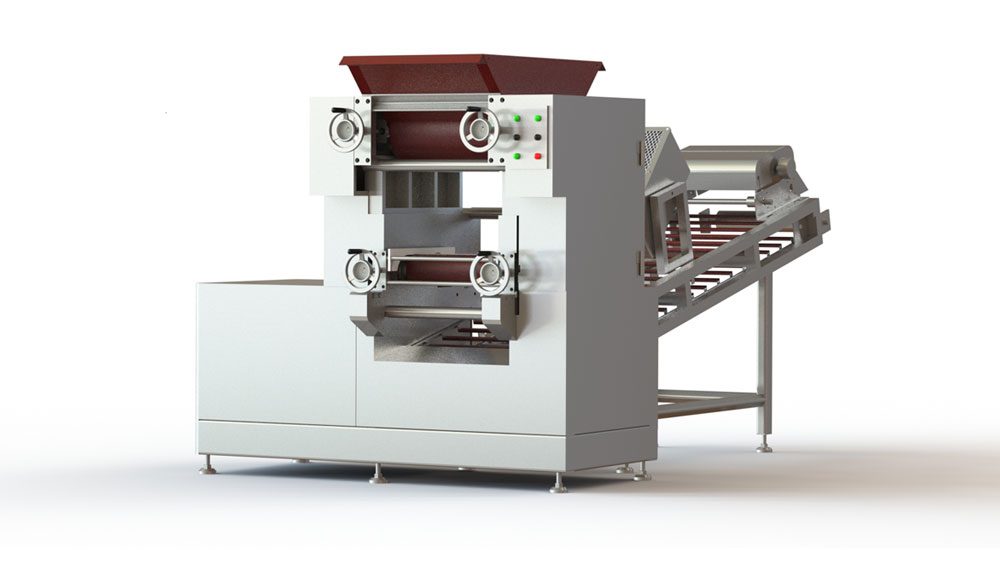

(ES-250 / ES-500) DOUGH SHEET
E-Series 2D/3D Multi-Layer Line
Cooked dough is sheeted to desired thickness and desired pattern by sets of sheeting rollers. Sheeting speed is controlled by synchronized proportional speed controller to meet cooking rate and to synchronize the cooling conveyor and dough winding device.
Feeding and sheeting rollers are coated with (Teflon) to prevent themselves from sticking. Equipped dough sheet slitting device (optional) slits off edges at both sides, which are then fed back to cooking section.
NP & Company is the industry-leading manufacturer of steam-cooked Snack Pellet Line, Extruded Snack Pellet Line, Coated Nuts Line, Pop Chips Line, Chocolate Vacuum Absorption Line, and many other machineries. NP is a total snack manufacturing solution provider. From NP’s supremely innovative, high-quality snack making solutions and systems that can address virtually any snack or pellet application in any market. From producing a pellet to fryer, roaster, seasoning, and even packaging, NP has a solution for you.
SPECIFICATIONS
Cooking Capacity
250 kgs/hr depending on the sheet’s thickness – For ES-250
500 kgs/hr depending on the sheet’s thickness – For ES-500
Teflon coated Feeding Roller
2 x 350 mm dia.
Teflon coated Sheeting Roller
2 x 127 mm dia. – For ES-250
2 x 169 mm dia. – For ES-500
* With edge –slitting design
Power Requirement
Variable geared 3.7 kW/unit proportional speed controller – For ES-250
5.9 kW; 3Ph – For ES-500
Dimension
3,111 mm (L) x 1,650 mm (W) x 1,555 mm (H) – For ES-250
3,215 mm (L) x 2,000 mm (W) x 1,700 mm (H) – For ES-500
Note: Design of sheeting roller is customer’s choiceSpare roller may be needed
