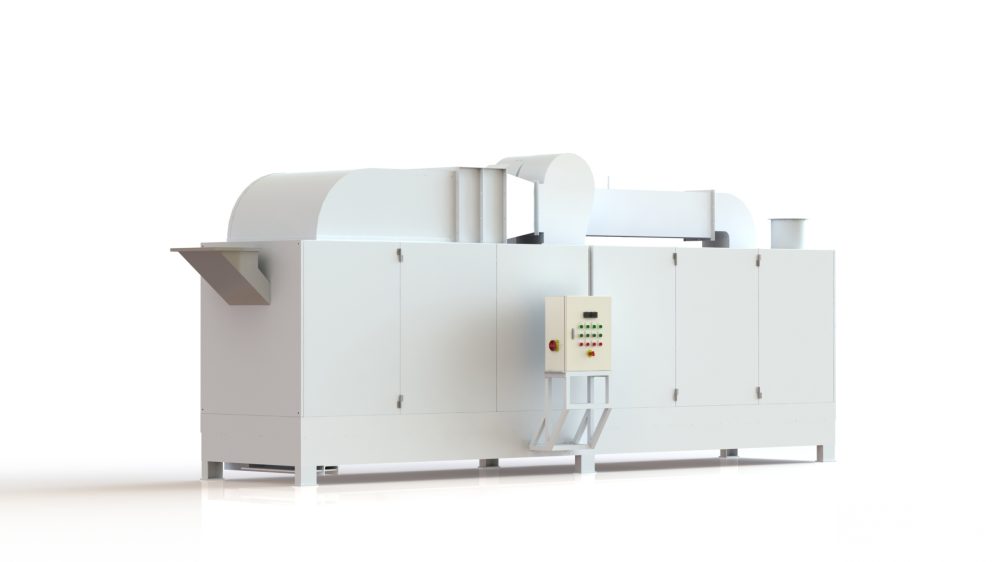

The perforated rotary drum rotating at 50 rpm receives the dough strips. Hot air is circulating inside the drum to provide heat to dry the strips while tumbling inside the 6 meter long drum.  Temperature inside the drum is about 70 to 80 deg. C which is provided by steam coil. Temperature is regulated manually and monitored by a dial type temperature gauge.

 The drum has flights and the length of stay for the dough strips inside the rotating drum can be regulated. After 15 to 20 minutes, the pellets (now already separated) is discharged at the end of drum then conveyed to the pellet sifter via a connecting conveyor.

NP & Company is the industry-leading manufacturer of steam-cooked Snack Pellet Line, Extruded Snack Pellet Line, Coated Nuts Line, Pop Chips Line, Chocolate Vacuum Absorption Line, and many other machineries. NP is a total snack manufacturing solution provider. From NP’s supremely innovative, high-quality snack making solutions and systems that can address virtually any snack or pellet application in any market. From producing a pellet to fryer, roaster, seasoning, and even packaging, NP has a solution for you.
