QRC-LINEAR FEEDER

Packaging Machine

QRCFeeder-Machine

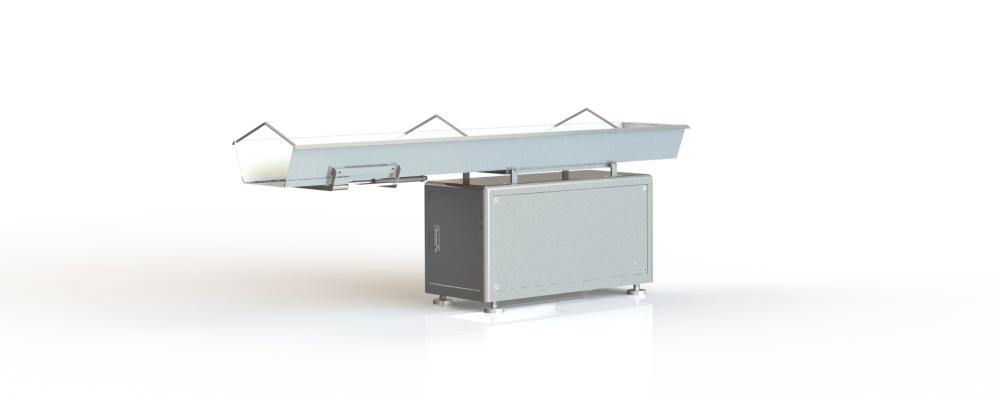

This is a Main Linear Conveyor with Pneumatic gate.

  • Transmission Box with SUS Full cover and BI painted framing
  • Individual control box with Inverter control to each unit of Main conveyor and Cross feeder
  • Main conveyor with Pneumatic gate control for product dispersal
  • With product sensor

NP & Company is the industry-leading manufacturer of steam-cooked Snack Pellet Line, Extruded Snack Pellet Line, Coated Nuts Line, Pop Chips Line, Chocolate Vacuum Absorption Line, and many other machineries. NP is a total snack manufacturing solution provider. From NP’s supremely innovative, high-quality snack making solutions and systems that can address virtually any snack or pellet application in any market. From producing a pellet to fryer, roaster, seasoning, and even packaging, NP has a solution for you.

SPECIFICATIONS

Construction

SUS 304 material, T:2mm for 2800mm through pans and all other parts touching the product

Through Pans

Width: Top:450mm; Bottom: 290mm;

Length: 2800mm, Depth: 150mm; T: 2mm

Dispersal capacity

8-12 kgs./Min.; depending on product bulk density

Motor Drive

0.4 kw; 220v; 3p
