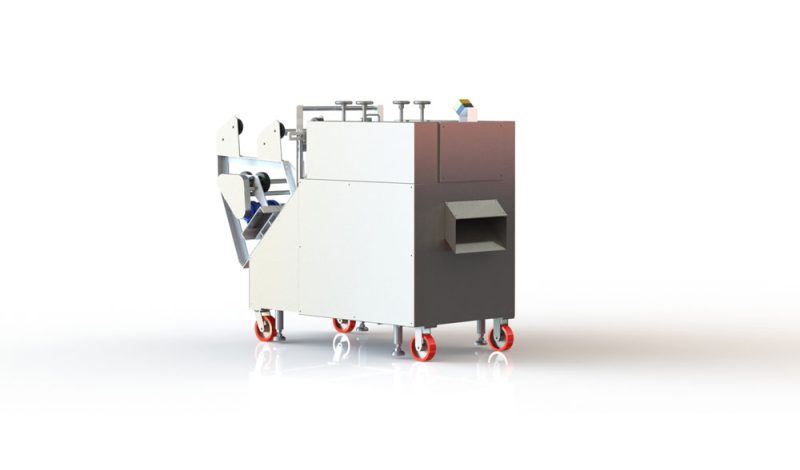

(EUS-1000D) DIRECT CUTTER

E-Series 2D/3D Multi-Layer Line

The Semi and Direct Cutter cuts the aged dough sheet into 2D shapes directly from the Winding Machineor directly cuts the thin dough sheet from the 11-Layer Drying/Cooling Conveyor. It is equipped with a set of longitudinal ring cutter, and a multiple rotary transversal cutter that processes the dough sheet. Main drive is inverter controlled with low speed for sheet feeding and high speed for rapid cutting. Pellet cut-off length is variable and adjusted by a mechanical speed of the longitudinal and transversal cutters. Pellet width is determined by the width of the ring cutting assembly (slitting unit).

NP & Company is the industry-leading manufacturer of steam-cooked Snack Pellet Line, Extruded Snack Pellet Line, Coated Nuts Line, Pop Chips Line, Chocolate Vacuum Absorption Line, and many other machineries. NP is a total snack manufacturing solution provider. From NP’s supremely innovative, high-quality snack making solutions and systems that can address virtually any snack or pellet application in any market. From producing a pellet to fryer, roaster, seasoning, and even packaging, NP has a solution for you.

SPECIFICATIONS

Capacity

200 to 300 kgs/hr

Power Requirement

4.2 kW; 3Ph

Dimension

2,380 mm (L) x 900 mm (W) x 1,350 mm (H)
